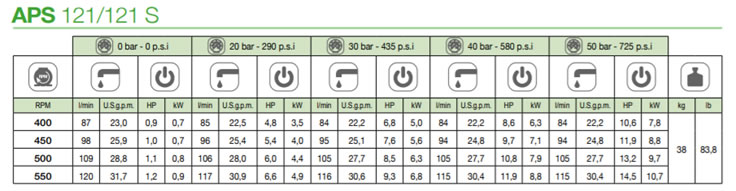

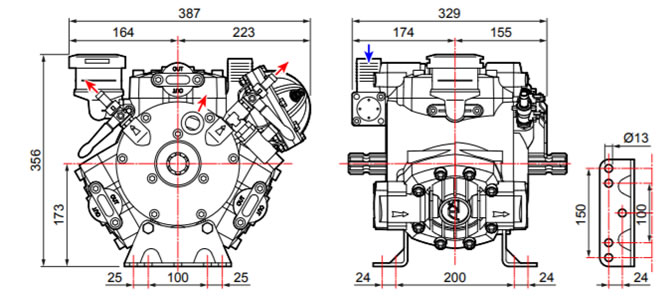

APS 121
- Italian 3-membrane pump in NBR (Desmopan® and Viton on order)
- Parts in contact with liquid: anodized aluminum
- As standard: pressure accumulator and safety valve
- On request: power take-off (PTO) protection
Related products
AR1203
Italian semi-hydraulic pump with three diaphragms. Parts in contact with pumped liquids in aluminum and AISI 303/304. NBR membranes. NBR seals. Screws with galvanic zinc treatment. Plug to empty the liquid from the circuit before wintering. Complete with overpressure valve with reset, air chamber and gimbal protection hood.
JP-150
- With ceramic liners
- Caudal: 150 Lts x min a 540 rpm
- Max working pressure: 35 Kgsf/cm2 / 500 Lbf/pul2
- Power required at 400 lbf/pul²: 10.7 HP
- Weight: 60 Kgs.
- Brand: Jacto – Brazil
- It has a discharge of 150 lt x min. Ideal for working with four guns. Ceramic sleeves extend the life of the pump, requiring less maintenance.
- The main characteristics: it has 3 pistons with a Ø 59 mm piston
JP-100
- With ceramic liners
- Caudal: 100 Lts x min a 540 rpm
- Max working pressure: 35 Kgsf/cm2 / 500 Lbf/pul2
- Power required at 400 lbf/in²: 7.0 HP
- Weight: 47 Kgs.
- Brand: Jacto – Brazil
- It has a discharge of 100 lt x min. Ideal for working with four guns. Ceramic sleeves extend the life of the pump, requiring less maintenance.
- The main characteristics: it has 4 pistons with a Ø 43 mm piston
JP-190
- With ceramic liners
- Caudal: 190 Lts x min a 540 rpm
- Max working pressure: 35 Kgsf/cm2 / 500 Lbf/pul2
- Power required at 400 lbf/pul²: 13.5 HP
- Weight: 60 Kgs.
- Brand: Jacto – Brazil
- It has a discharge of 190 lt x min. Ideal for working with four guns. Ceramic sleeves extend the life of the pump, requiring less maintenance.
- The number and diameter of the pistons are identical to those of the JP-150 pump. The difference is in the crankshaft which, due to its construction, rotates faster producing greater volume.
