Discs & Cores
- The characteristics of ALBUZ® ceramic allow working with strong pressures while maintaining precision and results.
- Hollow conical jet made up of fine droplets.

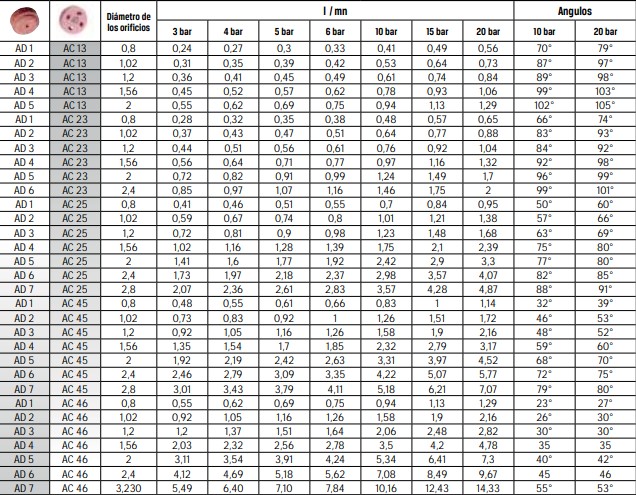

- It is possible to choose your application angle by choosing the corresponding Disc (AD) & Core (AC) coupling
Related products
Air induction Twin flat spray nozzle
- The inclination of the jets improves penetration into the vegetation. Nozzle with air aspiration (Venturi system): sprays thick drops loaded with air bubbles, which do not drift. They burst into fine droplets upon contact with plants.
- It almost completely suppresses drift while increasing the number of impacts (excellent coverage with treated areas).
- Anti-jamming design and double air intake hole.
- Compact format (28mm length) adapted to all ramps and nozzle holders.
- Recommended height of use: 50/60 cm.
- Recommended pressure: 3 bar
MVI Air induction Wide Angle Flat spray nozzle
- Air injection nozzle (venturi system): spraying large droplets loaded with air bubbles which do not drift and burst into small droplets upon contact with the plants.
- It almost completely eliminates drift, however increasing the number of impacts (excellent coverage of the treated area).
- Very easy disassembly for internal cleaning.
- Recommended pressure: 1.5 bar.
Hollow cone nozzle
- The flow rate of this nozzle corresponds to the international ISO color code.
- Quick disassembly for easy cleaning.
- The 80 degree angle can be associated with TVI 80° nozzles to optimize applications.
- Possibility of mounting on ramps from 3 bar.
- Perfect coupling with the turbulence chamber and flow pressure obtained thanks to the polishing of the ceramic parts.
- Recommended pressure: 10 bar.
